Field distribution around two copper bars

At Didiers Quickfield has been used to calculate AC-electromagnetic and heat transfer problems in the course of the development of the "InduCer"- technology. The sample given here is dedicated to pure electromagnetic problem: field distribution around two copper bars.

Problem Type:
A plane problem of time-harmonic magnetic field.

Geometry:

two copper bars model

Two copper bars with equal but opposite currents.

Given:
Magnetic permeability of air μ = 1;
Magnetic permeability of copper μ = 1;
Conductivity of copper σ = 56 000 000 S/m;
Current in the conductors I = 1880 A;
Frequency f = 10 000 Hz.

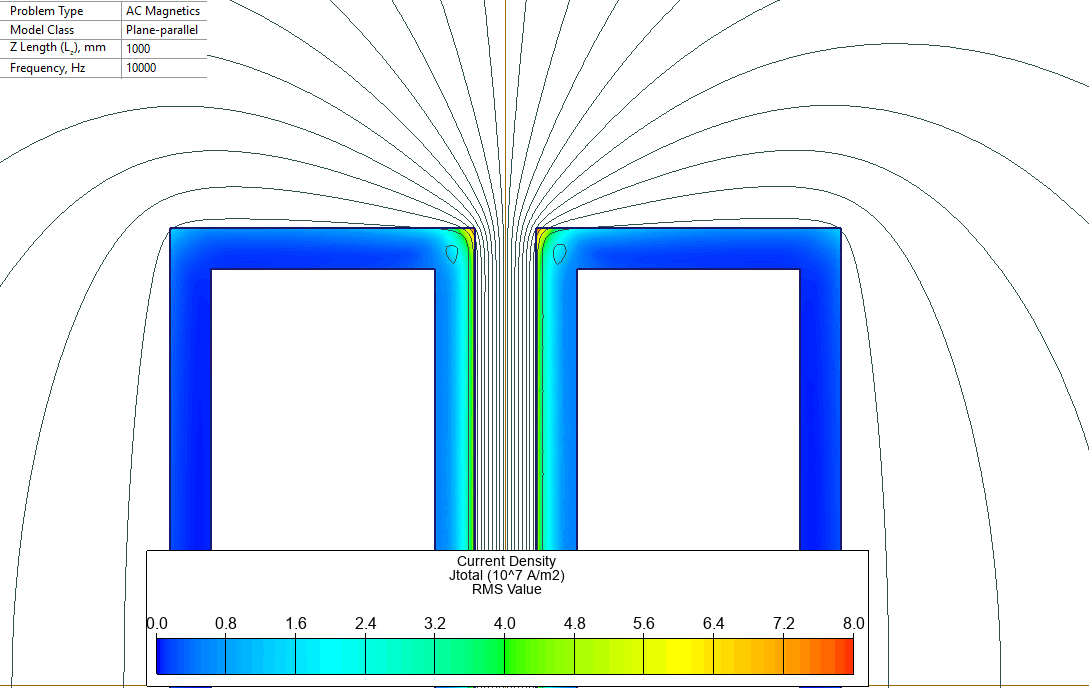

Results of two copper bars magnetic simulation:

two copper bars magnetic field

View movie Download video.

Download PDF icon View simulation report in PDF.

Download Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.

.
