Nonlinear ferromagnetic core in sinusoidal magnetic field

QuickField simulation example

A sinusoidal current carrying conductor is surrounded by nonlinear ferromagnetic core.

Problem Type
Plane-parallel problem of AC magnetics.

Geometry
AC current conductor inside steel tube Nonlinear ferromagnetic core in sinusoidal magnetic field Core Conductor Air R50 R25 R5

Given
Total current I = 500 A.
Frequency f = 50 Hz.
Core BH-curve: H = 100·B²

Task
Calculate B and H distribution along the radius R.

Solution
To calculate the sinusoidal filed distribution in nonlinear core we should use the modified curve B'(H). In this particular case the modified BH-curve can be calculated as B`(H) = B(H) * (1 + 1/sqrt(180)).
BH-curve for AC magnetics

Results
Magnetic field strength distribution
Magnetic field strength distribution in nonlinear ferromagnetic core

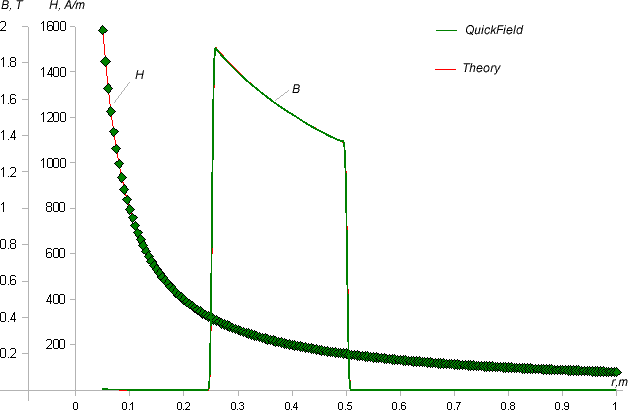

B,H distribution along the radius calculated by QuickField and by analytical expression.
