ISO 10211:2007 Thermal bridges in building construction -- Heat flows and surface temperatures -- Detailed calculations. Test case A.1 validation.

QuickField validation of the test case A.1 presented in ISO 10211:2007 Thermal bridges in building construction.

Problem Type:
Plane-parallel problem of heat transfer.

Geometry:

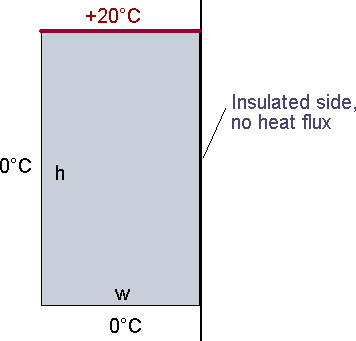

EN ISO 10211:2007 test case 1
width w = 4 m, height h = 8 m.

Given:
Thermal conductivity of the media λ = 1 W/K·m.

Problem:
Determine the temperature distribution in the media in reference points of the rectangular grid 1x1 m.

Results:
Temperature distribution in the media:

EN ISO 10211:2007 test case 1 temperature

Temperature calculated in QuickField is presented in the table below (reference temperatures are shown in the brackets). To comply with the ISO 10211:2007 the difference between calculated and reference temperatures should be less than 0.1°K. This simulation accuracy complies with the requirements of ISO 10211:2007.

T[°C]

Coordinate x[m]

y[m]

0

1

2

3

4

8

20

20

20

20

7

0

9.65 (9.7)

13.37 (13.4)

14.73 (14.7)

15.09 (15.1)

6

0

5.25 (5.3)

8.64 (8.6)

10.31 (10.3)

10.82 (10.8)

5

0

3.19 (3.2)

5.61 (5.6)

7.02 (7.0)

7.47 (7.5)

4

0

2.02 (2.0)

3.64 (3.6)

4.66 (4.7)

5.00 (5.0)

3

0

1.26 (1.3)

2.30 (2.3)

2.99 (3.0)

3.22 (3.2)

2

0

0.74 (0.7)

1.36 (1.4)

1.77 (1.8)

1.91 (1.9)

1

0

0.34 (0.3)

0.63 (0.6)

0.82 (0.8)

0.89 (0.9)

0

0

0

0

0

0

*ISO 10211:2007(en) Thermal bridges in building construction - Heat flows and surface temperatures - Detailed calculations.

View movie Download video.

Download PDF icon View simulation report in PDF.

Download icon Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
