Repelling of the ring-shaped magnets

Two coaxial permanent ring-shaped magnets repel each other.

Problem type:
Axisymmetric problem of magnetostatics

Geometry:

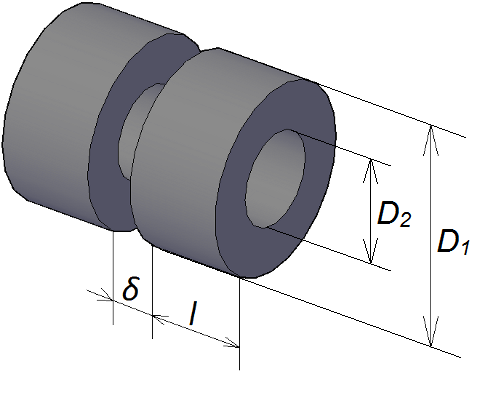

Two coaxial permanent ring-shaped magnets model

D1 = 2" (50.8 mm) inner diameter of the ring magnet;
D2 = 0.5" (12.7 mm) outer diameter of the ring magnet;
l = 0.75" (19.05 mm) - thickness of the magnet;
δ=0.5" (12.7 mm) - gap between the magnets.

Given:
magnet grade N35, Hc = 954930 A/m, Br = 1.26 T;

Task:
Calculate the repelling force between two coaxial ring-shaped permanent magnets.

Solution:
For accurate calculation, the integration contour is drawn in the air around one of the magnet.

Result:

Two coaxial permanent ring-shaped magnets repulsion simulation

Repelling force

QuickField

160 N

Reference*

175 N (38.51 lb, 1 lb = 4.54 N)

* Reference: www.kjmagnetics.com.

Download PDF icon View simulation report in PDF.

Download Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
