Analysis of heat transfer in the capacity kiln

Problem Type:
Plane problem of heat transfer.

Geometry:

capacity kiln model

Kiln consists of following parts: thermalite, chamotte porous and chamotte.

Given:
Temperature of heat source: 1000 °C;
Temperature of outer surface: 20 °C;
Thermal conductivity of thermalite: 0.065 W/K·m;
Thermal conductivity of chamotte porous: 1 W/K·m;
Thermal conductivity of chamotte: 0.1025 W/K·m;
Thermal conductivity of air: 10 W/K·m;

Problem:
Calculate temperature distribution in the capacity kiln.

Results:
Temperature distribution in the capacity kiln.

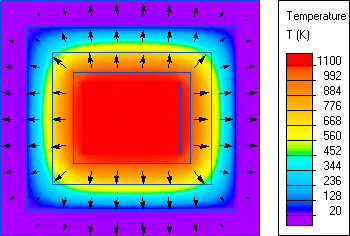

capacity kiln temperature distribution
