Temperature field inside the crucible stove

Problem Type:
Plane problem of heat transfer.

Geometry:

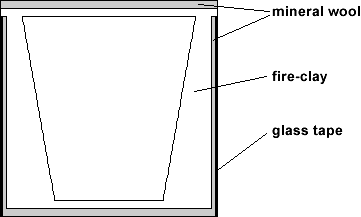

Crucible stove model

Stove height = 740 mm;
Stove width = 800 mm.

Given:
Temperature of heat source: 700°C;
Temperature of outer surface: 50°C;
Thermal conductivity of mineral wool: 0.0583 W/K·m;
Thermal conductivity of glass tape: 0.058 W/K·m;
Thermal conductivity of fire-clay (as a function of time t): 0.837+0.582·t W/K·m;

Problem:
Calculate temperature distribution in the crucible stove.

Results:
Temperature distribution in the crucible stove.

crucible stove temperature distribution

View movie Download video

Download PDF icon View simulation report in PDF.

Download icon Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
