Attraction of the cylindrical magnet to the steel plate

Cylindrical permanent magnet is pulled toward the ferromagnetic plate.

Problem type:
Axisymmetric problem of magnetostatics

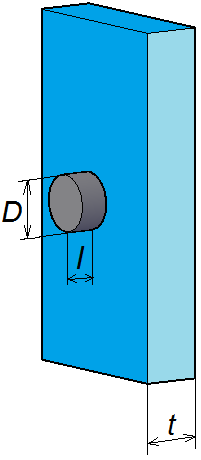

Geometry:

Attraction of the cylindrical magnet to the steel plate

D = 2" (50.8 mm) - magnet diameter;
l = 0.65" (16.51 mm) - magnet thickness;
t = 2" (50.8 mm) - plate thickness;

Given:
magnet grade N35, Hc = 954930 A/m, Br = 1.26 T;
relative magnetic permeability of plate μsteel = 1000.

Task:
Calculate the pulling force of the magnet toward the steel plate.

Solution:
To calculate the pulling force accurately, and avoid integration along the edge dividing media with large difference in magnetic permeabilities, we place the magnet at a small distance δ = 0.005" (0.127 mm) from the steel plate. Integration contour is drawn in the air around the magnet.

Result:

pulling force of the magnet toward the steel plate

Pull force

QuickField

542 N

Reference*

510 N (112.3 lb, 1 lb = 4.54 N)

* Reference: www.kjmagnetics.com.

View movie Download video.

Watch online on YouTube.

Download PDF icon View simulation report in PDF.

Download Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
