Litz wire losses

Litz wire is used to reduce winding losses at high frequency. Litz wire consists of 7 insulated transposed wires.

Problem type:
Axisymmetric problem of AC magnetics.

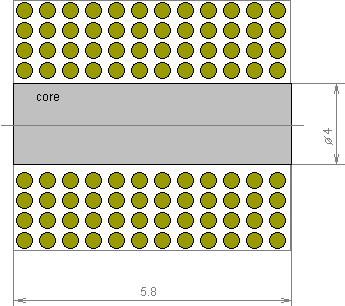

Geometry:

litz wire

All dimensions are in millimeters.

Given:
Core permeability μ = 2500,
Copper conductivity g=56e6 S/m,
Current I=1 A (RMS).
Conductor cross-sectional area S=0.126 mm2.
Frequency f=1 kHz.

Task:
Compare electric losses in the winding with solid wire and with litz wire.

Solution:
Each strand wire has its own label. The connection scheme is specified in external circuit file.

Results:

Frequency [kHz]

Solid wire losses [W]

Litz wire losses [W]

0

0.09

0.09

50

0.24

0.13

100

0.66

0.25

200

1.8

0.66

litz wire eddies

* Reference: http://en.wikipedia.org/wiki/Litz_wire

Download PDF icon View simulation report in PDF.

Download Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
