Magn4: Brushless DC motor

A brushless DC motor with permanent magnets and three phase coil excitation.

Problem Type:
Plane problem of DC magnetics.

Geometry:

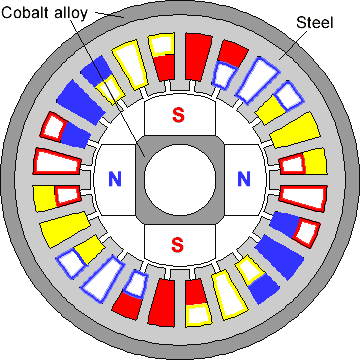

Electric DC motor model

Axial length of the motor is 40 mm.

The four magnets are made of Samarium-Cobalt with relative permeability of 1.154 and coercive force of 550000 A/m. The current densities for the coil slots are as follows:
1,300,000 A/m2 on R+, -1,300,000 A/m2 on R-,
1,300,000 A/m2 on S+, -1,300,000 A/m2 on S-,
and zero on T+ and T-.

The inner and outer frames are made of Cobalt-Nickel-Copper-Iron alloy. The B-H curve for the Cobalt-Nickel-Copper-Iron alloy:

H (A/m)

20

60

80

95

105

120

140

160

180

200

240

2500

B (T)

0.19

0.65

0.87

1.04

1.18

1.24

1.272

1.3

1.32

1.34

1.36

1.45

The B-H curve for the steel:

H (A/m)

400

600

800

1000

1400

2000

3000

4000

6000

B (T)

0.73

0.92

1.05

1.15

1.28

1.42

1.52

1.58

1.60

Results:

Flux density in brushless DC motor with permanent magnets and three phase coil excitation:

Flux density in brushless DC motor

Download PDF icon View simulation report in PDF.

Download icon Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
