Ohm's law

This verification example compares the current and the Joule heat generated in conductor calculated by the Ohm's law and Joule's law, and calculated in QuickField using three formulations: DC conduction, AC conduction and Transient electric.

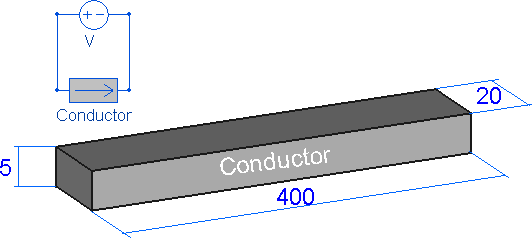

Geometry:
All dimensions are in millimeters

Ohm law verification with FEM

Given:
V = 0.1 V - voltage applied;
f = 50 Hz - frequency in time harmonics and transient magnetics problems;
g = 1e6 S/m - conductivity of conductor material.
L = 0.4 m - conductor length.
A = 0.02*0.005 m2 - conductor cross-section area.

Task:
Calculate the current and Joule heat inside the conductor and compare with the value given by the Ohm's law.

Solution:
To maintain the same value of Joule heat across all formulations the voltage value is adjusted:
In the time harmonics problem peak amplitude value of voltage is set √2·V.
In the transient electric voltage is set via formula V(t) = √2·V · sin(2·180·50·t).

According to the Ohm's law* the current is determined as:
I = V / R [A],
where the conductor resistance is R = (1/g) * (L/A)

Joule heat Q = R*I2

Results:
Conductor resistance R = (1/1e6) * (0.4/0.02*0.005) = 0.004 Ohm
Current: I = 0.1 / 0.004 = 25 A
Joule heat Q = 0.004 * 25 * 25 = 2.5 W.

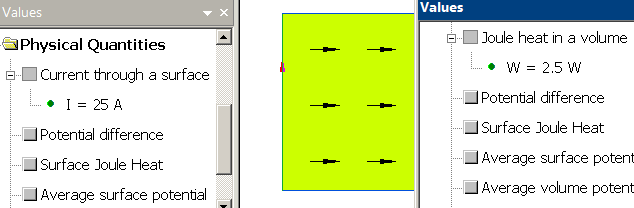

DC conduction:

Ohm law direct current

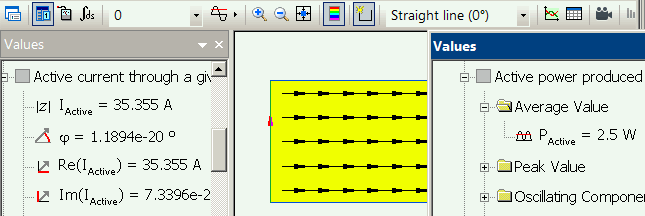

Time harmonics (peak current value is presented, RMS value is √2 times smaller, 35.355/1.4142 = 25 A):

Ohm law alternating current

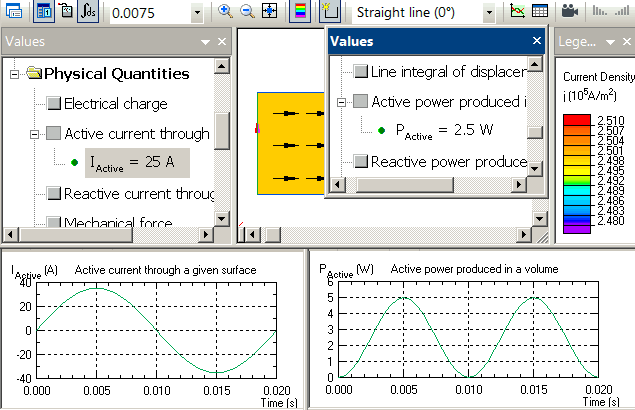

Transient electric:

Time

Current

Joule heat

0.01 s

0 A

0 W

0.0125 s

25 A

2.5 W

0.015 s

35.355 A

5 W

Ohm law transient magnetic analysis



Joule heat [W]

Ohms' law

2.5

DC conduction

2.5

Time harmonics

2.5

Transient electric (time-average)

2.5

*Wikipedia: Ohm's law.

Download PDF icon View simulation report in PDF.

Download Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
