Signal cable

Power and signal cable are buried in a common duct. Calculate the electric field distribution and find the mutual capacitance.

Problem Type:
Plane problem of Electrostatics.

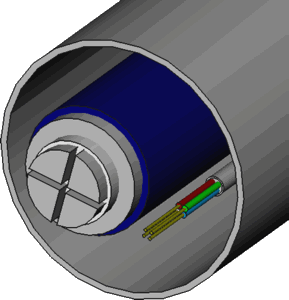

Geometry:

signal cable model

Given:
The power cable consists of 4 isolated conductors (A, B, C, 0).
Voltage U = 660 V,
frequency f = 50 Hz.
The signal cable consists of 4 isolated conductors (s1, s2, s3, s4).

Problem:
Determine the mutual capacitance.

Solution:
To calculate self and mutual capacitances of conductors the Capacitance calculator addin is used.

Result:

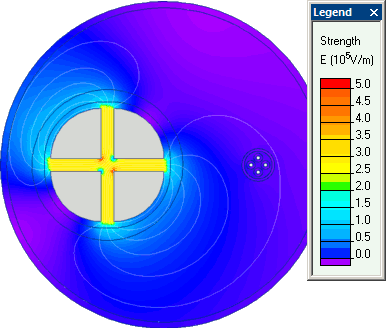

Electric field strength at phase 60°:

power cable EMC simulation signal cable stress

A

B

C

0

s2

s1

s4

s3

A

2.06e-011

5.76e-011

2.77e-012

5.63e-011

2.31e-014

2.15e-014

7.43e-015

8.01e-015

B

5.76e-011

2.06e-011

5.80e-011

2.75e-012

9.32e-013

1.27e-012

5.25e-013

3.24e-013

C

2.77e-012

5.80e-011

2.06e-011

5.75e-011

5.25e-013

1.24e-012

9.32e-013

3.24e-013

0

5.63e-011

2.75e-012

5.75e-011

2.06e-011

7.44e-015

2.1473e-014

2.3091e-014

8.0139e-015

s2

2.3127e-014

9.3256e-013

5.2505e-013

7.4404e-015

4.3477e-012

1.1255e-011

2.8165e-012

1.1127e-011

s1

2.1491e-014

1.2369e-012

1.2363e-012

2.1473e-014

1.1255e-011

3.1118e-012

1.1245e-011

2.831e-012

s4

7.4345e-015

5.252e-013

9.3176e-013

2.3091e-014

2.8165e-012

1.1245e-011

4.3443e-012

1.1119e-011

s3

8.0111e-015

3.2422e-013

3.2407e-013

8.0139e-015

1.1127e-011

2.831e-012

1.1119e-011

5.4758e-012

Download PDF icon View simulation report in PDF.

Download Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
