Thunderstorm electric field

Problem Type:
Plane problem of electrostatics.

Geometry:
The model consists of clouds, buildings, trees and ground.
Building height 80m,
Tree height 40m,
Church tower height 120m,
Clouds height 250m.

Given:
Cloud 1 potential U1 = 4 MV;
Cloud 2 potential U2 = -5 MV;
Potential of the buildings, trees, ground U3 = 0 V.

Results:

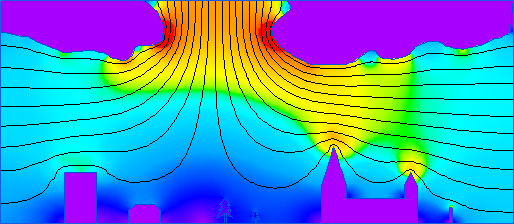

storm electric field strength

Download PDF icon View simulation report in PDF.

Download icon Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
