Attraction of the cylindrical magnets

Two coaxial cylindrical permanent magnets are pulled to each other.

Problem type:
Axisymmetric problem of magnetostatics

Geometry:

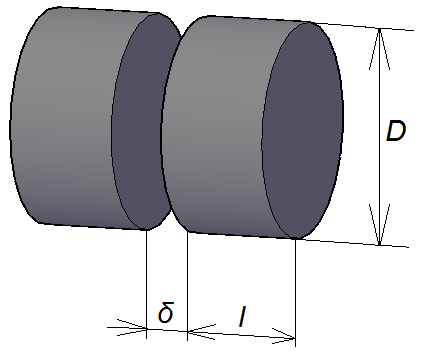

Two coaxial cylindrical permanent magnets model

D = 2" (50.8 mm) - magnet diameter;
l = 0.65" (16.51 mm) - magnet thickness;
δ=0.5" (12.7 mm) - gap between the magnets.

Given:
magnet grade N35, Hc = 954930 A/m, Br = 1.26 T;

Task:
Calculate the pulling force between two coaxial cylindrical magnets.

Solution:
To calculate the correct result an integration contour is drawn in the air around one of the magnets.

Result:

Two coaxial cylindrical permanent magnets attraction simulation

Pull force

QuickField

164 N

Reference*

153 N (33.77 lb, 1 lb = 4.54 N)

* Reference: www.kjmagnetics.com.

View movie Download video.

Watch online on YouTube.

Download PDF icon View simulation report in PDF.

Download Download simulation files (files may be viewed using any QuickField Edition).
