Repelling of the cylindrical magnets

Two coaxial cylindrical permanent magnets repel one another.

Problem type:
Axisymmetric problem of magnetostatics

Geometry:

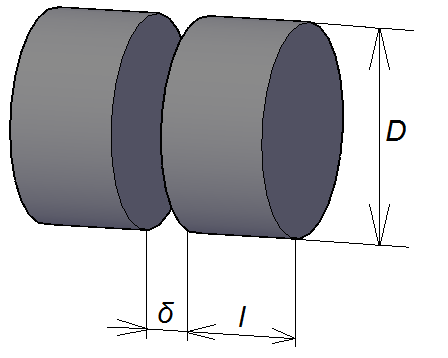

Two coaxial cylindrical permanent magnets model

D = 2" (50.8 mm) - magnet diameter;
l = 0.65" (16.51 mm) - magnet thickness;
δ=0.5" (12.7 mm) - gap between the magnets;

Given:
magnet grade N35, Hc = 954930 A/m, Br = 1.26 T;

Task:
Calculate the repelling force between two coaxial cylindrical magnets.

Solution:
To calculate the correct result an integration contour is drawn in the air around one of the magnets.

Result:

Two coaxial cylindrical permanent magnets repulsion simulation

Repelling force

QuickField

160 N

Reference*

153 N (33.77 lb, 1 lb = 4.54 N)

* Reference: www.kjmagnetics.com.

View movie Download video.

Watch online on YouTube.

Download PDF icon View simulation report in PDF.

Download Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
