Cable termination

cable termination design, cable termination electric field, electric stress distribution

Cable termination is a most loaded part of the cable system, and special measures should be taken to limit the field strength and assure safe and reliable operation. Two conductor high voltage cable terminations may be simulated with QuickField using 3D Extrusion approach.

Problem Type: electrostatics.

Geometry: 3D extrusion.

cable termination model

Given:
Relative permittivity of insulation ε = 2,
Relative permittivity of filler ε = 2.2,
Relative permittivity of sheath ε = 2.3,
Potential difference ΔU = 1 kV

Task:
Find electric field strength distribution.

Results:

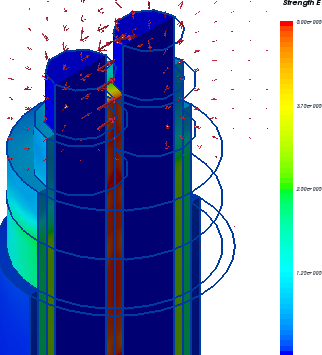

Electric field stress distribution

Electric field stress distribution in cable termination

  • Video: Cable termination
  • Watch on YouTube

  • Download simulation files (files may be viewed using any QuickField Edition).
