QuickField components
QuickField workflow is based on its main components
Creates the geometric model
+
Defines the physical properties
Displays the results
Parametric analysis tool LabelMover and set of Add-Ins expand the basic set of features.
QuickField has well documented application programming interface. You can write your own utilities to extend the QuickField functionality.

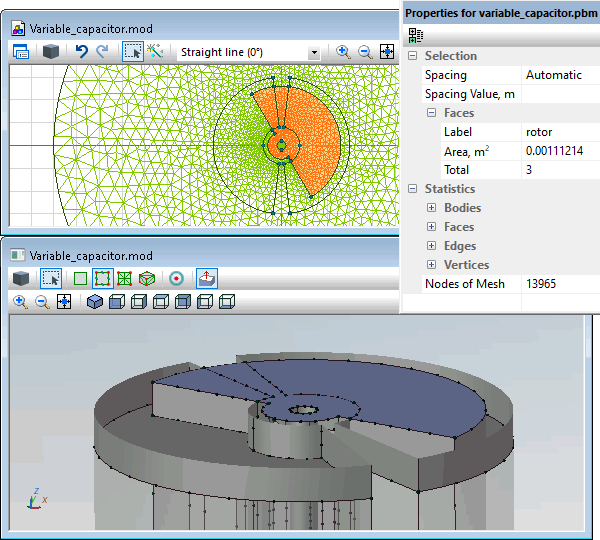

Model editor
QuickField's model editor enables you to define your models quickly, easily, and completely. You can import model fragments from AutoCAD or other CAD systems as well. Once you have built your model's geometry, creating the mesh is totally effortless.
Data editor
Data definition in QuickField means assignment of the physical properties to the labels used for main groups of geometry primitives - edges, blocks, or vertices. Each of them may be edited by the same approach using the Data Editor. Data files are specific to the problem type, but data presentation and all operations are very similar.

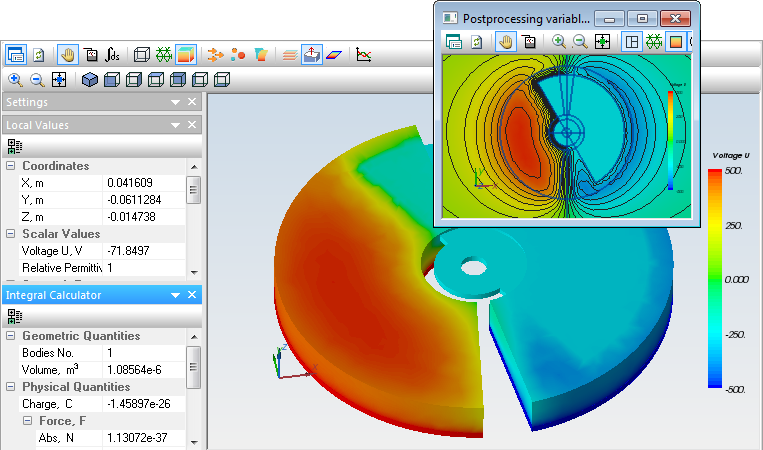

Postprocessor
The QuickField interactive postprocessor helps you analyze results in many different graphical forms: tensor plots, vector plots, field lines, particles trajectories, color maps, and section plots along arbitrary contours. It is also equipped with a very powerful calculator that makes it very easy for you to obtain various design parameters, and calculate different surface and volume integral quantities in arbitrary regions.
Parametric modeling with LabelMover
LabelMover is a powerful tool for simple parametric study of QuickField models. This utility is based on ActiveField and works in three modes: Serial, Tolerance and Optimization analysis.
Serial Analysis mode generates the series of QuickField problems with specified alterations of the model geometry or physical properties, solves these problems and presents results as a table or graph.
Addins
QuickField add-ins extend the basic functionality of QuickField. They are distributed by Tera Analysis Ltd free of charge, and covered by the terms of QuickField Software License. QuickField Application programming interface allows development of additional modules, interacting with QuickField core and extending its functionality. Free utilities, developed by QuickField Support team, may be downloaded from our website.
