Fiber-optic cable and electric transmission line

transmission line optical cable, electric field stress, fiber-optic cable

Calculation of the low electric stress zone for the most favorable fiber-optic cable position on the transmission line tower.

Problem type:
Plane-parallel problem of AC conduction

Geometry:

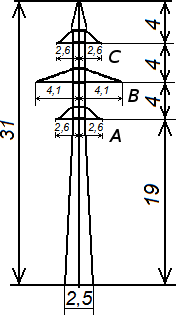

Optical cable transmission line model Determine the most favorable position of the fiber-optic cable (area of minimal electric potential) from the electric field calculation. C B A Soil 19 m 4 m 4 m 4 m 4.1 m 2.6 m

Given:
Line voltage (RMS value) UL = 110 kV.

Task:
Determine the most favorable position of the fiber-optic cable (area of minimal electric potential) from the electric field calculation.

Result:

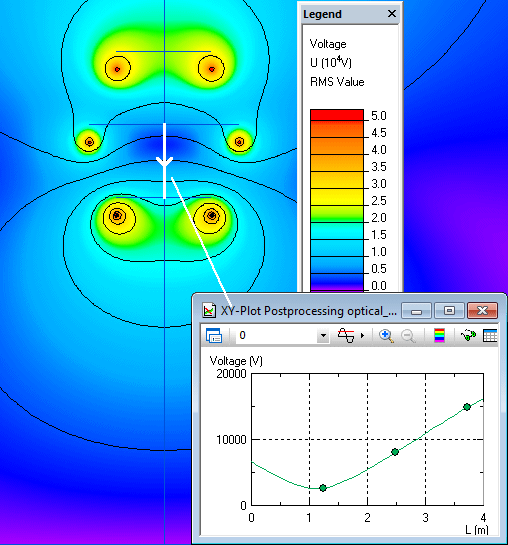

Distribution of electric potential:
Distribution of electric potential of three phase transmission line

  • Video: Fiber-optic cable and electric transmission line
  • Watch online on YouTube.
  • View simulation report in PDF
  • Download simulation files (files may be viewed using any QuickField Edition).
