Attraction of the block magnet to the steel plate

Rectangular prism shaped permanent magnet is pulled toward the ferromagnetic plate.

Problem type:
Plane-parallel problem of magnetostatics

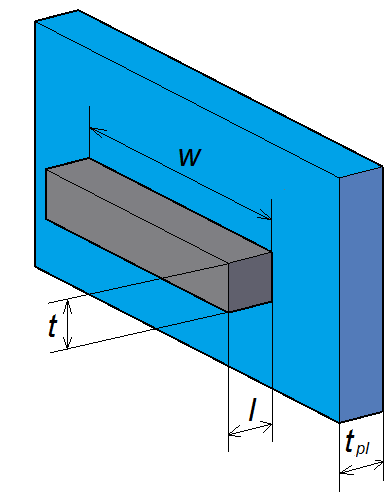

Geometry:
Attraction of the block magnet to the steel plate Rectangular prism shaped permanent magnet is pulled toward the ferromagnetic plate Steel Permanent magnet t l w d δ

w=1.5" (38.1 mm) - magnet width;
t=0.25" (6.35 mm) - magnet thickness;
l=0.25" (6.35 mm) - magnet length;
d=0.25" (6.35 mm) - plate thickness;

Given:
magnet grade N35, Hc = 954930 A/m, Br = 1.26 T;
relative magnetic permeability of the plate μsteel = 1000.

Task:
Calculate the pulling force of the magnet attraction to the steel plate.

Solution:
To calculate the pulling force accurately, and avoid integration along the edge dividing media with large difference in magnetic permeabilities, we place the magnet at a small distance δ = 0.005" (0.127 mm) from the steel plate. Integration contour is drawn in the air around the magnet.

Result:
Magnetic field of the brick permanent magnet in vicinity of the steel wall.
Magnetic field of the brick permanent magnet in vicinity of the steel wall

Pull force

QuickField

74 N

Reference*

65 N (14.3 lb, 1 lb = 4.54 N)

* Reference: www.kjmagnetics.com.

  • Video: Attraction of the block magnet to the steel plate
  • Watch on YouTube
  • View simulation report in PDF
  • Download simulation files (files may be viewed using any QuickField Edition).
