Dynamo wrench

stress analysis simulation, dynamo wrench simulation, finite element analysis of wrench, mechanical stress distribution

This is an example of the dynamo wrench simulation, performed with QuickField software.

Problem Type:
Plane-parallel problem of stress analysis.

Geometry:

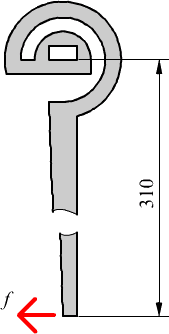

Dynamo wrench Calculate the wrench displacement Fixed Force 270 mm

Given:
Wrench thickness d = 10 mm;
Force applied f = 100 N

Task:
Calculate the displacement.

Result:
The wrench hand will move for 9 mm.

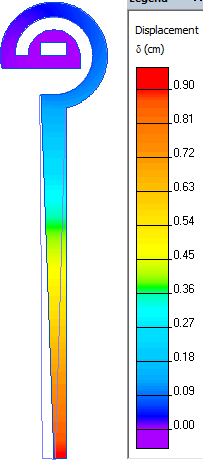

dynamo wrench hand deformation simulation

  • Video: Dynamo wrench
  • Watch on YouTube.
  • View simulation report in PDF
  • Download simulation files (files may be viewed using any QuickField Edition).
