Flyback transformer EMC

magnetic field of flyback transformer, transient electromagnetic analysis

Flyback transformer is a source of high frequency electromagnetic field.

Problem Type
Axisymmetric problem of Transient magnetics

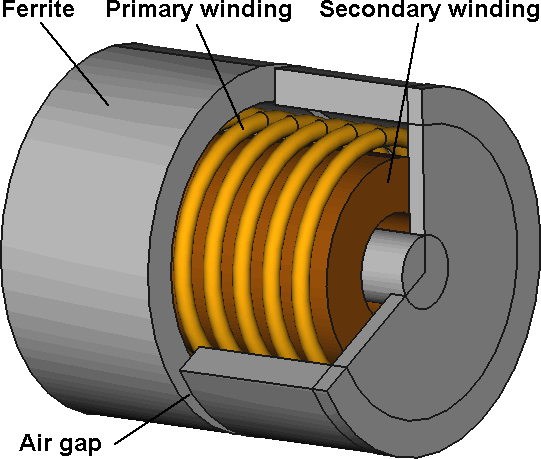

Geometry

flyback transformer

Given
Ferrite permeability μ=1000,
Operation frequency f=1 kHz,

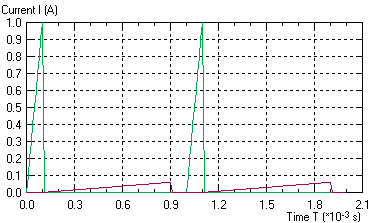

The transformer works in discontinuous mode, currents in windings are known:

Task
Calculate the magnetic field distribution around flyback transformer during operation cycle.

Solution
Model may be defined and solved as a Transient Magnetic Analysis problem.

Results
Magnetic field around the flyback transformer.

flyback transformer emc

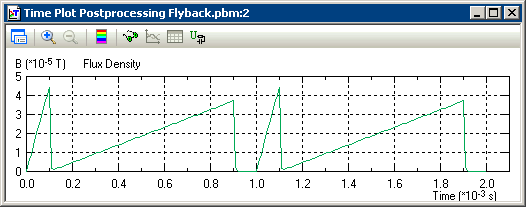

Magnetic flux density 1 cm away from the flyback transformer.

flyback transformer emc

* Reference: http://en.wikipedia.org/wiki/Flyback_transformer

  • Video: Flyback transformer EMC
  • Watch on YouTube.
  • View simulation report in PDF
  • Download simulation files (files may be viewed using any QuickField Edition).
  • Eddy currents simulation with QuickField
