Halbach array

A Halbach Array is the special arrangement of permanent magnets with alternating polarization designed to make the magnetic field on one side much higher than the field on the other side.

Problem type:
Plane-parallel problem of DC magnetics

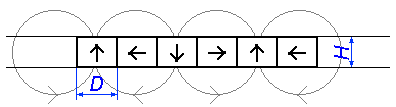

Geometry:

Halbach array

Given:
D = 0.5 inch,
H = 0.5 inch,
Magnet material - N35.

Task:
Calculate the magnetic field distribution.

Solution:
Model may be defined and solved as a DC Magnetic Analysis problem.

Results:
Halbach array magnetic field distribution. The field below the array is lower than the field above the array.

Halbach array magnetic field distribution

Plot of magnetic field 0.03 inch below and 0.03 inch above the array.

Halbach array flux density distribution

References:
http://en.wikipedia.org/wiki/Halbach_array
https://www.kjmagnetics.com/blog.asp?p=halbach-arrays

View movie Download video.

Download PDF icon View simulation report in PDF.

Download Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
