Slot conductor

This is an example of the slot of an electric machine simulation, performed with QuickField software.

Problem Type:
Plane problem of heat transfer.

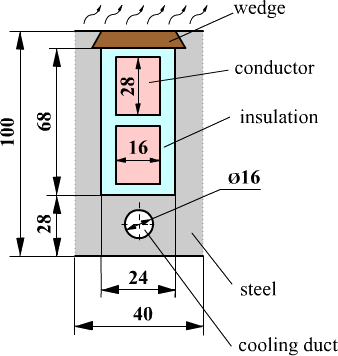

slot heating

All dimensions are in millimeters.

Current density j=4.5 A/mm2.
Copper electric conductivity g = 56e6 Sm/m.

Determine the temperature of the slot.

Volume power density Q = j2 / g = 360 kW/m3.



Temperature distribution in slot conductor:

AC motor slot heating simulation

View movie Download video

View movie Watch on YouTube.

Download PDF icon View simulation report in PDF.

Download icon Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
