Repelling of the block magnets

Two rectangular prism shaped permanent magnets repel one another.

Problem type:
Plane-parallel problem of magnetostatics

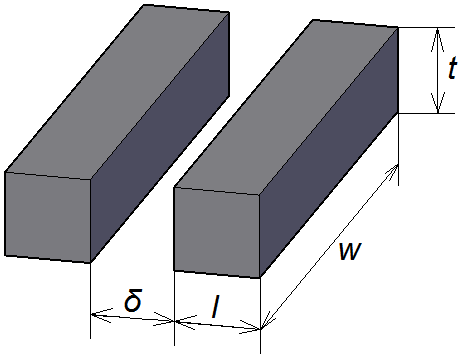

Two rectangular prism shaped permanent magnets model

w=1.5" (38.1 mm) - magnet width;
t=0.25" (6.35 mm) - magnet thickness;
l=0.25" (6.35 mm) - magnet length;
δ=0.5" (12.7 mm) - gap between the magnets.


Calculate the repelling force between two magnets.

To calculate the correct result an integration contour is drawn in the air around one of the magnets.


Two rectangular prism shaped permanent magnets simulation

Repelling force


3.30 N


3.50 N (0.77 lb, 1 lb = 4.54 N)

* Reference: www.kjmagnetics.com.

Download PDF icon View simulation report in PDF.

Download Download simulation files (files may be viewed using any QuickField Edition).

There are no restrictions applied to the QuickField Student Edition postprocessors.
You can view field maps, make plots, calculate integrals and print pictures in the same way that the Professional Edition users do.
