Welding transformer output power

welding transformer simulation, transformer volt ampere characteristic, electric circuit analysis

This is an example of the welding transformer simulation, performed with QuickField software.

Problem Type
Plane-parallel problem of AC magnetics.

Geometry
Welding transformer output power Calculate the loading characteristic of the welding transformer. Core Primary Secondary I+ I- C R

Given
C = 1 μF, R = 0..10 Ohm;
Primary voltage V = 220 V;
Frequency f = 60 Hz;
Primary number of turns = 1200;
Secondary number of turns = 220;

Task
Calculate the output U(I) chart of the welding transformer.

Solution
A series of problems with different R value were automatically generated and simulated using LabelMover parametric tool.

Results
Magnetic flux density distribution and the electric current for the R=0.1 Ohm.
Welding transformer output power

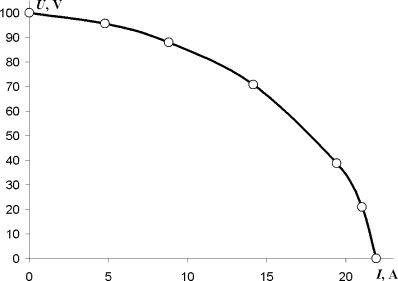

Output characteristic of the welding transformer:

  • Video: Welding transformer output power
  • Watch on YouTube.
  • View simulation report in PDF
  • Download simulation files (files may be viewed using any QuickField Edition).
  • Eddy currents simulation with QuickField
