Vessel

thermal insulating vessel FEA finite element analysis

Thermal insulating vessel (thermal conductivity of the material is given) separates a heated agent from the ambient space so that temperature difference between its internal and external sides is 220°C.

Problem type:
Axisymmetric problem of heat transfer.

Geometry:

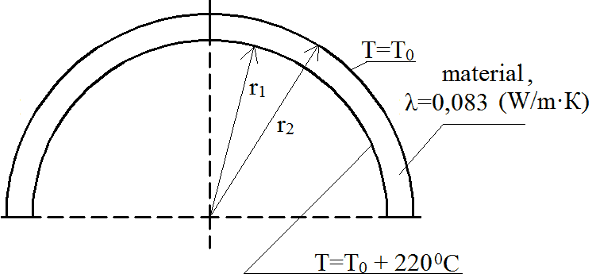

Vessel thermal insulation model Thermal insulating vessel separates a heated agent from the ambient space Material T0 T0 + 220°C r2 r1

r1=610 mm, r2=700 mm

Given:
Thermal conductivity of the material λ=0.083 W/(m·K);
Temperature of the external boundary T0;
Temperature of the internal boundary T0 + 220°C.

Task:
Calculate heat flux passing through the spherical surface of the vessel.

Solution:
The problem is linear, and passing flux will be the same for any specific setting of T0. For simplicity we may consider T0=0°C (273.15 K).

Result:

Vessel thermal insulation temperature

Heat Flux, W
QuickField 1089.8
Theory* 1088.67

*Rajput R.K.(2010). Engineering Thermodynamics, Third Edition. Sudbury, MA:Jones and Bartlett Publishers. p 816.

  • Video: Vessel
  • View simulation report in PDF
  • Download simulation files (files may be viewed using any QuickField Edition).
